产品简介:

Product introduction:


Leetop_ALP_203_F2是基于英伟达Xavier NX/TX2 NX/NANO 核心板 研发的一款嵌入式人工智能计算机,能够为众多终端设备赋予高达21TOPS /1.33 TFLOPS/472 GFLOPS的计算力。Jetson  Xavier NX可以和NVIDIA 强大的AI软件堆栈/SDK及软件平台相结合,作为高性能低功耗的嵌入式边 缘计算设备,主要应用于制造、物流、零售、服务、农业、智慧城市、医 疗保健、生命科学等领域的先进人工智能机器人、边缘检测设备和AI应用 场景. Leetop_AL P_203_F2提供快速的主动散热设计,可以满足抗震防静 电等工业标准。同时L eetop_ALP_203_F2接口丰富性价比高。


Leetop_ ALP_ 203_ F2 is an embedded artificial intelligence computer developed based on the NVIDIA Xavier NX/TX2 NX/ NANO core module, which can provide up to 21TOPS/1.33  TFLOPS/ 472  GFLOPS of computing power to numerous terminal devices. Jetson Xavier NX can be combined with NVIDIA's powerful AI software stack/SDK and software platform. As a high- performance and low-power embedded edge computing device, it is mainly used in advanced AI robots, edge detection equipment and AI application scenarios in manufacturing, logistics, retail, service, agriculture, smart city, healthcare, life science and other fields. Leetop_ AL P_ 203_ F2 provides a fast active heat dissipation design that can meet industrial standards such as seismic and anti- static performance. At the same time, L eetop_ ALP_ 203_ The F2 interface is rich and cost-effective.


产品规格 Product specification:

处理器模块 Processor module:


Jetson   Xavier   NXJetson   Xavier   NX   16GB
AI Performance21  TOPS
GPU
384-core NVIDIA Volta ™ GPU with 48 Tensor  Cores
CPU
6-core NVIDIA Carmel Arm®v8.2 64-bit  CPU 6MB   L2   +   4MB   L3
Video Encode

2x 4K60 | 4x 4K30 | 10x 1080p60 |22x1080p30   (H.265)

2x 4K60 | 4x 4K30 | 10x 1080p60 |20x108p30   (H.264)

Video Decode
2x   8K30   |   6x   4K60   |   12x   4K30   |  22x1080p60   |   44x   1080p30  (H.265)  2x   4K60   |
Memory
8 GB 128-bit LPDDR4x59.7GB/s
16   GB   128-bit LPDDR4x  59.7GB/s
Storage
16   GB   eMMC  5.1   *



Jetson NANO

Jetson TX2 NX

AI Performance

472 GFLOPS

1.33 TFLOPS

GPU

128-core NVIDIA Maxwell™ architecture GPU

256-core NVIDIA Pascal™ architecture GPU

CPU

Quad-Core Arm® Cortex®-A57 MPCore processor

Dual-Core NVIDIA Denver 2 64-

Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor

Video Encode

1x 4K30 (H.265)

2x 1080p60 (H.265)

1x 4K60 (H.265)

3x 4K30 (H.265)

4x 1080p60 (H.265)

Video Decode

1x 4K60 (H.265)

4x 1080p60 (H.265)

2x 4K60 (H.265)

7x 1080p60 (H.265)

14x 1080p30 (H.265)

Memory

4GB 64-bit LPDDR4

25.6GB/s"

4GB 128-bit LPDDR4

51.2GB/s

Storage

16 GB eMMC 5.1 *

16 GB eMMC 5.1


产品规格 Product specification:

Interface

Specification

Network1 × Gigabit Ethernet Connector (10/100/1000)
USB

2x USB 3.0 Type A (Integrated USB2.0)1X USB 3.0

1x USB 2.0 Micro-AB

Video

output

1✖HDMI
SIM Card1x SIM Card
CAN1 × CAN
RS232 1x RS232
TF_Card1xTF_Card
Function key1xReset key; 1x Recovery key


Project

Specification

Input Voltage+9V to +19V DC Input @ 3A
Load capacityAbove 60W

Dimensions

(W×D ×H)

94x92x51 (mm)

Operating

Temperature

-25℃-65℃

0.2~0.3m/airflows

Storage

Temperature

-20℃-60℃
Weight

0.390KG


尺寸示意图 :

Schematic diagram of dimensions:

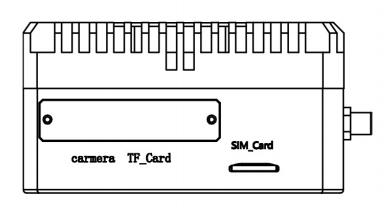

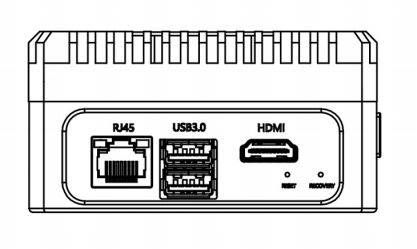

正视图 Front view左视图 Left view

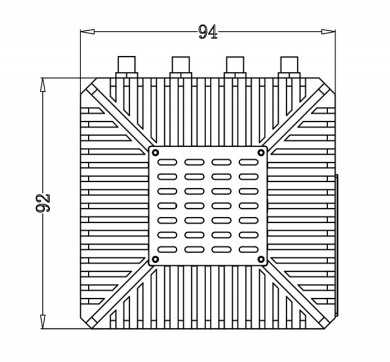

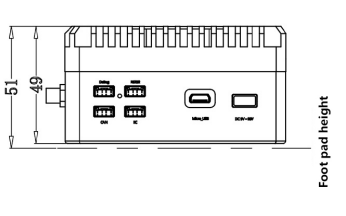

俯视图 Up view右 视 图 Right view
