SUB kit-603 orin nx

带*号为必填选项,提交后我司会安排商务邮箱发送给您对应的产品PDF文档.

产品特点

产品功能

产品简介:

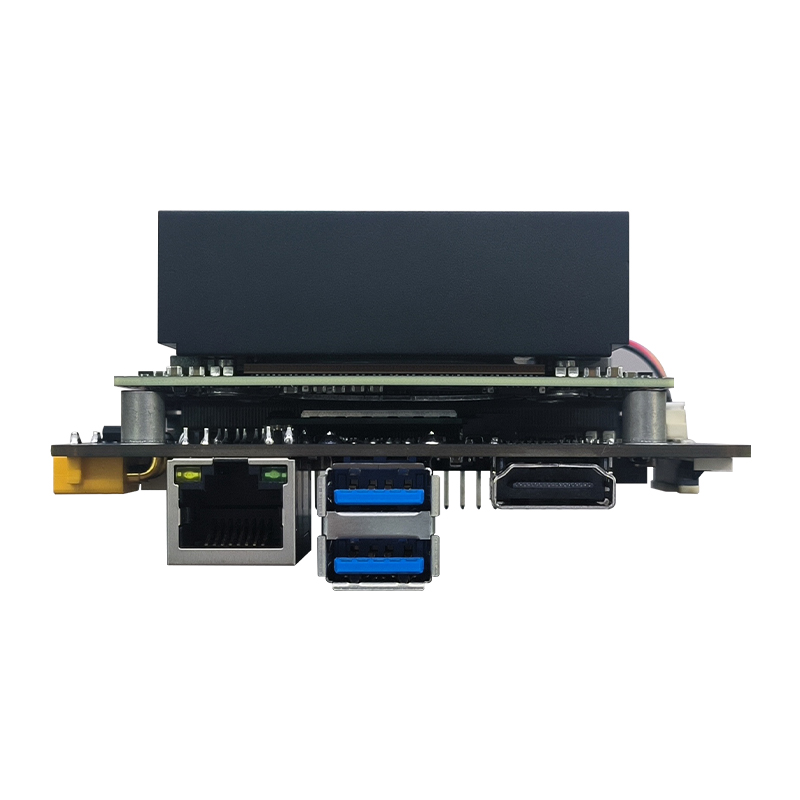

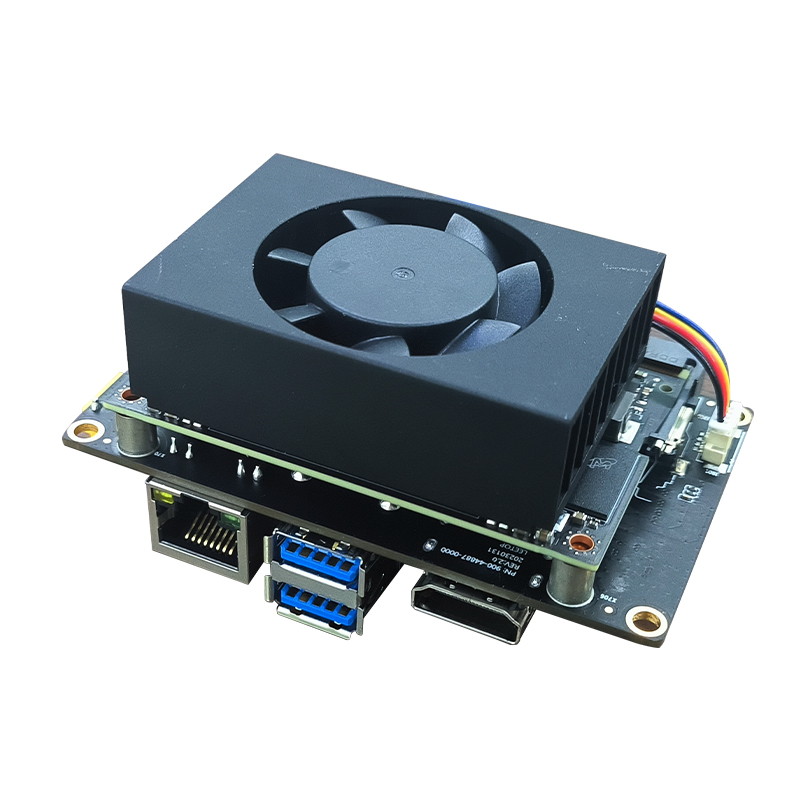

SUB kit-603 orin nx(16G)是由A603载板+Orin Nx 核心板研发的 一款嵌入式人工智能计算机,能够为众多终端设备赋予高达70/100TOPS 的计算力。SUB kit-603 orin nx(16G)提供快速的主/被动散热设 计,可以满足抗震防静电等工业标准。同时尺寸小,接口丰富,性价比 高。


SUB kit-603 orin nx (16G) is an embedded artificial intelligence  computer developed on A603 carrier board and Orin Nx core  board, which can provide up to 70/100TOPS of computing power  to many end devices. SUB kit-603 orin nx (16G) provides a fast  active/passive heat dissipation design that meets industry  standards such as seismic and electrostatic resistance. At the same  time, small size, rich interface, high cost performance.


产品规格:

处理器模块:


Jetson Orin NX 8GBJetson Orin NX 16GB
AI Performance70 TOPS100 TOPS
GPU1024-core NVIDIA Ampere GPU with 32  Tensor Cores
CPU6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L38-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3
Video  Encode1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Video  Decode1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Memory8 GB 128-bit LPDDR5 102.4 GB/s16 GB 128-bit LPDDR5 102.4 GB/s
Storage

(Supports external NVMe)

POWER10W-20W10W-25W


接口I/O:

接 口 Interface规格 Specification
Network1 × Gigabit Ethernet Connector (10/100/1000)
USB

2x USB 3.0 Type A (Integrated USB 2.0)

1x USB 3.0 0.5mm pitch 20P ZIF

1x USB 2.0 Micro-AB

Video output1 × HDMI
CAN1 × CAN
I2S1 × I2S(3.3V Level)
M.2 KEY E PCIE1 × PCIE 2230 SIZE
M.2 KEY M1 × M.2 KEY E Interface(NVMe SSD)2242
Camera1 × CSI CAMERA


供电 Power Supply:

Power SupplySpec
Input Voltage+9--+20V DC Input @7A
Typical consumption60W


结构 Mechanical:

MechanicalSpec
Dimensions (W×D ×H)87× 52x46.1 (mm)
Weight0.145KG


环境 Environmental:

EnvironmentalSpec
Operating  Temperature

-20℃-65℃

0.2~0.3m/s气流

Storage Temperature-20℃-60℃
Storage Humidity

10%-90% non-condensin

g非结露环境

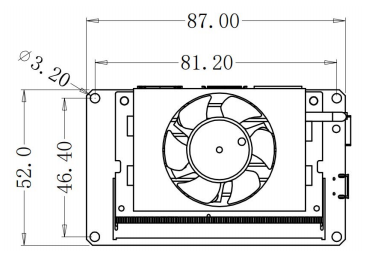

尺寸示意图 Schematic diagram of dimensions:

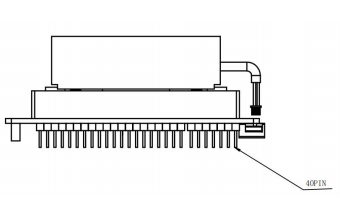

正视图 Front view右视图 Right view

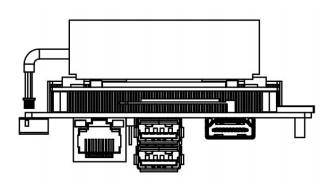

俯视图 Up view后视图 Rear view
