产品特点
产品功能
产品简介：
Product introduction:
Leetop_SUBKIT_610_Orin_Nano是基于英伟达Orin Nano核心板研发的一款 嵌入式人工智能计算机，能够为众多终端设备赋予高达20/40TOPS的计算力。 Jetson Orin Nano可以和NVIDIA强大的AI软件堆栈/SDK及软件平台相结合，作 为高性能低功耗的嵌入式边缘计算设备，主要应用于制造、物流、零售、服务、 农业、智慧城市、医疗保健、生命科学等领域的先进人工智能机器人、边缘检测 设备和AI应用场景。 Leetop_SUBKIT_610_Orin_Nano提供快速的主动散热设计 ，可以满足抗震防静电等工业标准。同时 Leetop_SUBKIT_610_Orin_Nano 接口 丰富性价比高。
Leetop_SUBKIT_610_Orin_Nano an embedded artificial intelligence computer developed based on NVIDIA's Orin Nano core module, which can give up to 20/40TOPS computing power to many terminal devices. Jetson Orin Nano can be combined with NVIDIA's powerful AI software stack/SDK and software platform as a high-performance and low-power embedded edge computing device, mainly used in manufacturing, logistics, retail, services, agriculture, smart city, healthcare, life sciences and other fields of advanced artificial intelligence robots, edge detection equipment and AI application scenarios. Leetop_SUBKIT_610_Orin_Nano provides a fast active heat dissipation design that can meet industry standards such as anti-vibration and anti-static. meantime
Leetop_SUBKIT_610_Orin_Nano interfaces are abundant and cost-effective.
产品规格 Product specification：
处理器模块 Processor module：
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
AI Performance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
| Project | Spec |
| Input Voltage | +10---+24V(60W) DCInput |
| Load capacity | Above60W |
| Dimensions (W×D ×H) | 104.9x100.08x33.05 (mm) |
| Operating Temperature | -25℃-70℃ |
Storage Temperature /Humidity | -25℃-65℃ 10%-90% Non Condensing Environment |
| Weight | 0.18615KG |
| Interface | Specification |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 3X USB(CONNECT) 1x USB2.0 (TYPE C) |
| Video output | 2× HDMI |
| Function key | 1x Power key; 1xRecovery key ; 1xReset key |
尺寸示意图 ：
Schematic diagram of dimensions：

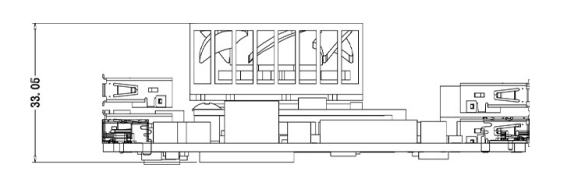

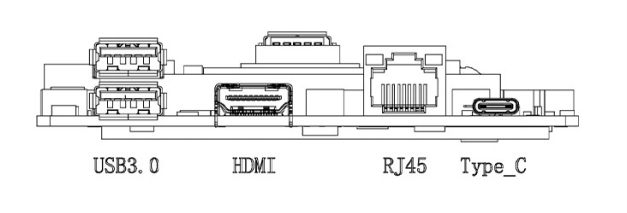

| 正视图 Front view | 左视图 Left view |
 |  |

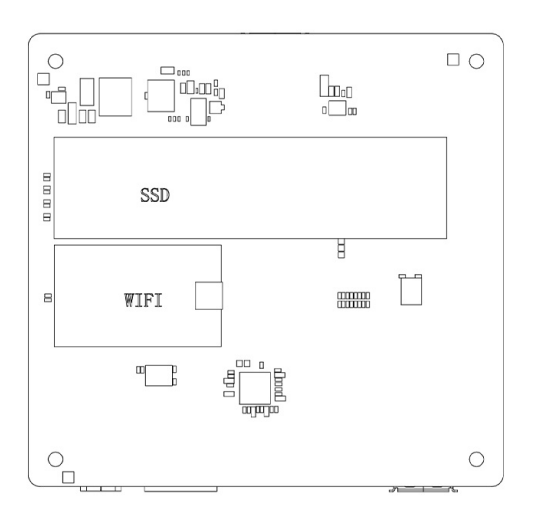

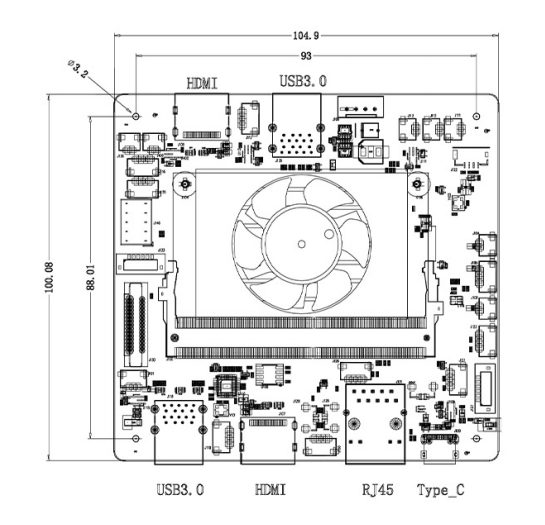

| 俯视图 Up view | 底部图 Bottom view |
 |  |
