SUB KIT NANO-F

带*号为必填选项,提交后我司会安排商务邮箱发送给您对应的产品PDF文档.

产品特点

产品功能

NVIDIA

JETSON NANO SUB KIT NanoThE LOW-COST AI COMPUTER FOR ALL.


Join the Revolution and Bring the Power of AI to Millions of Devices

The Leetop Jetson Nano™ Sub Kit Nano delivers the compute performance to run modern AI workloads at unprecedented size, power, and cost. Developers, learners, and makers can now run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. It’s incredibly power-efficient, consuming as little as 5 watts.Jetson Nano is also supported by NVIDIA JetPack™, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started. The same JetPack SDK is used across the entire NVIDIA Jetson™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.


KEY FEATURES

Jetson Nano Module

>128-Core NVIDIA Maxwell™ GPU                             >HDMI/DisplayPort

>Quad-Core ARM® A57 CPU                                     >M.2 Key E

>16GB eMMc                                                              >Gigabit Ethernet

>4 GB 64-Bit LPDDR4                                                 >GPIOs, I2C, I2S, SPI, UART

>10/100/1000BASE-T Ethernet                                   >MIPI-CSI Camera Connector

>Fan Connector                                                          >PoE Connector


Power Options

>Micro-USB 5V 2A

>DC Power Adapter 5V 4A

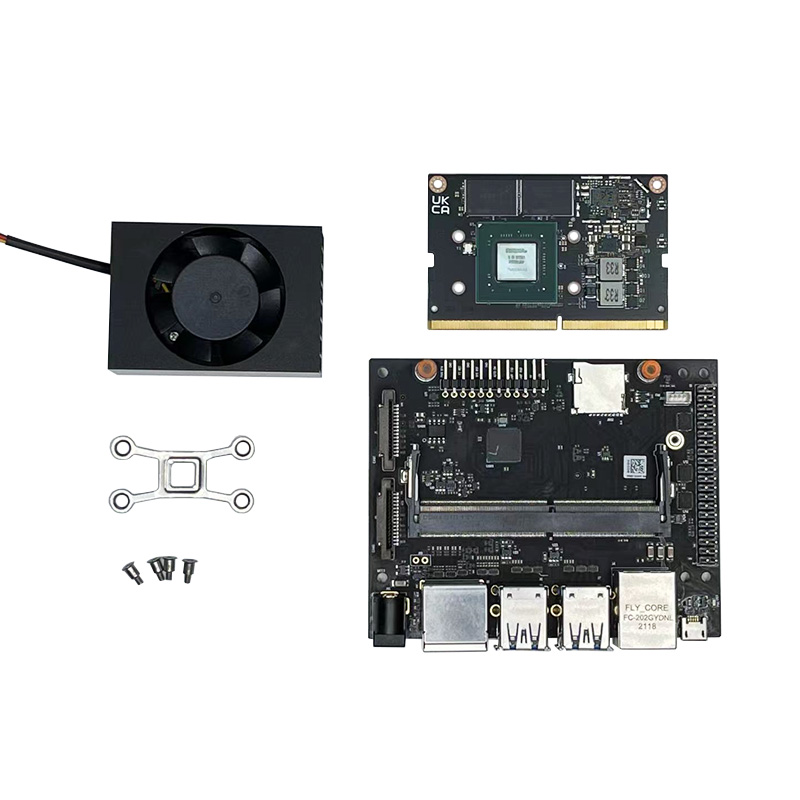

Kit Contents

>NVIDIA Jetson Nano Module with Heatsink and Reference Carrier Board

>Quick Start Guide and Support Guide


I/O

>USB 3.0 Type A

>USB 2.0 Micro-B


LEETOP SUB KIT NANO TEChNICAL SPECIFICATIONS

DEVELOPER KIT


GPU128-Core Maxwell
CPUQuad-Core ARM A57 @ 1.43 GHz
Memory4 GB 64-bit LPDDR4 25.6 GB/s
Storage16GB eMMC
Video Encoder4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30| (H.264/H.265)
Camera2x MIPI CSI-2 DPHY lanes
ConnectivityGigabit Ethernet, M.2 Key E
DisplayHDMI 2.0 and eDP 1.4
USB4x USB 3.0, USB 2.0 Micro-B
OthersGPIO, I2C, I2S, SPI, UART
Mechanical100 mm x 80 mm x 29 mm

*Please refer to NVIDIA documentation for what is currently supported.
