产品简介：
Product introduction：
Leetop_ALP_609_F是基于英伟达Orin Nano/Orin Nx核心板研发的一款嵌入式人工智能计算机，能够为众多终端设备赋予高达20/40/70/100TOPS的计算力。Leetop_ALP_609_F提供快速的主动散热设计，可以满足抗震防静电等工业标准。同时Leetop_ALP_609_F接口丰富，性价比高。
Leetop_ALP_609_F is an embedded artificial intelligencecomputer developed based on the NVIDIA Orin Nano/Orin Nxcore board, which can provide computing power up to20/40/70/100TOPS for many terminal devices. Leetop_ALP_609_Fprovides a fast active cooling design, which can meet industrialstandards such as shock resistance and anti-static. At the sametime, Leetop_ALP_609 F has rich interfaces and high costperformance.
产品规格 Product Specifications
处理器模块 processor module
| Jetson Orin Nano 4GB | Nano 4GB Jetson Orin Nano 8GB | |
| AI Performance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O
| 接口 Interface | 规格 Specification |
| Network | 5x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type C |
| Video output | 1 × HDMI |
| Audio | 1xAudio |
| 20PIN IO CON | 20PIN Multifunction |
| Function key | 1x Power key;1xRecovery key ;1xReset key |
| power | +12--+36VDC Input NO PSE Device（Max 80W）,With PSE Device(Max 150W) |
供电 Power Supply
| Power Supply | Spec |
| Input Voltage | +12--+36VDC Input NO PSE Device（Max 80W）,With PSE Device(Max 150W) |
| Power consumption | Above 90W |
结构Mechanical
| Mechanical | Spec |
| Dimensions (W×D ×H) | 210x132x54(mm) |
| Weight | 1.06595KG |
环境Environmental
| Environmenta | Spec |
| Operating Temperature | -25℃-75℃ 0.2~0.3m/s气流 |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% Non-condensing environment 非结露环境 |
尺寸示意图Schematic diagram of dimensions

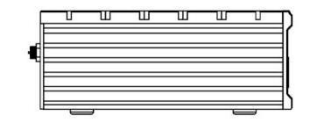

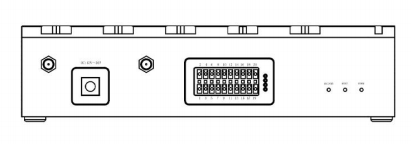

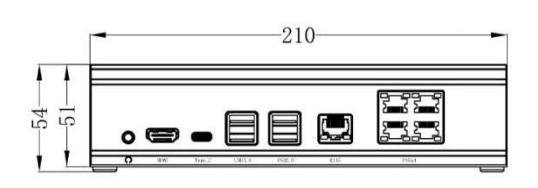

| 正视图 Front view | 左视图 Left view |
 |  |

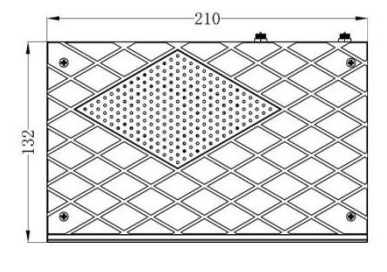

| 俯视图 Up view | 底部图 Bottom view |
 |  |
选配表Matching table
| Product name | Core module | SSD | communication | power |
| ALP_609_F | ||||
| J1:Orin Nano(4G) | ||||
| J2:Orin Nano(8G) | ||||
| J3:Orin NX(8G) | ||||
| J4:Orin NX(16G) | ||||
| N | ||||
| 128G | ||||
| 256G | ||||
| 512G | ||||
| 1T | ||||
| N | ||||
| 4G | ||||
| 5G | ||||
| N | ||||
| 01:明纬 | ||||
| 02:定制 |
